SP – Equipment for High Velocity Thermal Spray Metal Gold and Silver Coatings

We have created our Kermetico HVAF SP to spray metal gold and silver coatings.

Kermetico HVAF SP System to Spray Metal Gold Coatings and Metal Silver Coatings

Kermetico HVAF SP

Key features:

  • Axial powder injection
  • Protection against feedstock oxidation
  • No precious metal evaporation in the coating process
  • Deposition of uniform, dense, high-bond gold and silver coatings 50-500 microns (0.002” – 0.020”) thick

Using the Kermetico HVAF SP System for Precious Metal Plating

HVAF equipment is well suited for a precious metal coating process due to its low combustion temperature, high technological efficiency and process stability.

The temperature of propane combustion in air – 1,980 °C (3,600 °F) is enough to preheat precious metal particles in the jet below their melting point as the dwell time is too short to melt them.

Additionally, we protect axially injected particles from overheating in the combustion chamber with inert gas.

We avoid metal deposition on the combustion chamber and nozzle walls by computational flow modeling and maximize deposition efficiency by engineering it into the trouble-free technology.

And we supply spare parts that will not wear out for hundreds of hours, providing consistent plating quality and precious metal deposition efficiency.

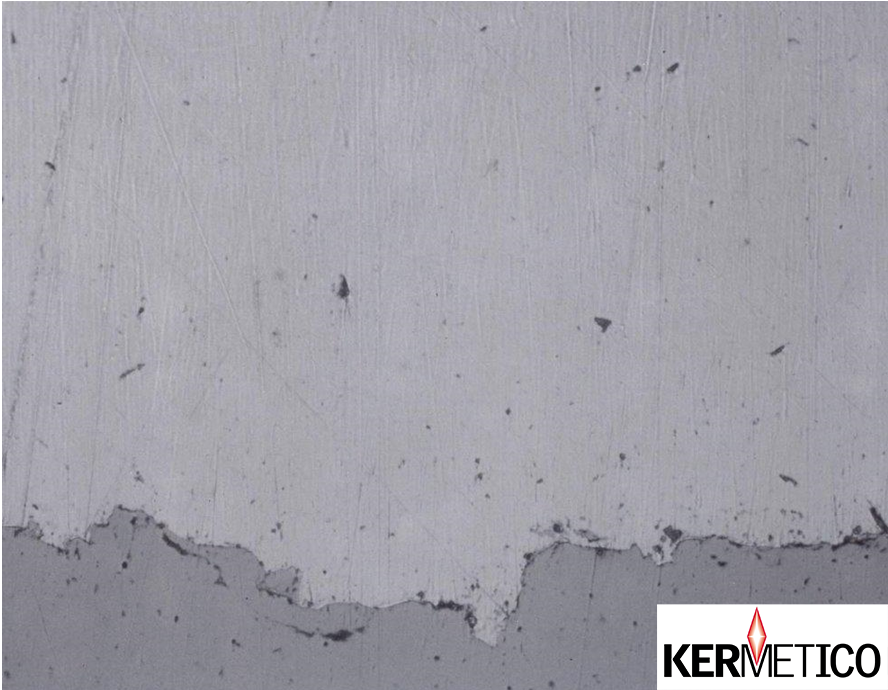

A Kermetico HVAF Thermal Spray Metal Silver Coating

A Kermetico HVAF Thermal Sprayed Metal Silver Coating

As a result, you will get a high-bond, 100% dense metal silver or gold coating with minimized (and predictable) material loss.

A  Description of HVAF Process for Gold and Silver Coatings

The HVAF SP Gun sprays precious metal powders, heated and accele­rated by the air-fuel gas combustion products.

When entering the gun, the compressed air cools the chamber and the nozzle assembly.

The mixture of compressed air and the chosen fuel gas flows into the combustion chamber through the orifices of a catalytic cera­mic insert.

The initial ignition of the mixture results in the heating of the insert above the mixtures’ auto-ignition tempera­ture, and then the hot insert continuously ignites the mixture.

Then part of the preheated air is mixed with the fuel and combusted.

The metallic spray powder is injected axially into a wide combustion chamber.

The powder exiting the chamber is propelled into the nozzle of chosen length and configuration, where it is accelerated to a velocity that may be over 1,000 m/s.

When impacting a sub­strate, the spray powder particles form a coating.

Kermetico HVAF Thermal Spray Coating Equipment

Kermetico designs and manufactures three families of HVAF thermal spray equipment.

  • Convertible HVOF and HVAF equipment:
    • C7 – an HVAF/HVOF gun for large parts
    • C6 – a general purpose HVAF-HVOF gun
  • Multi-purpose HVAF AK systems, with a variety of spray guns:
    • AK7 – a high power gun for the thermal spray of large parts
    • AK6 – a universal gun to spray a balanced mix of parts in a job shop
    • AK5 – a compact gun to spray smaller parts, thin walls and complex surfaces
    • AK-ID – an 80 mm (3.15”) and larger internal diameter spray gun
    • AK-IDR – a rotating ID gun to spray 4” (100 mm) and larger bores
    • AK-HH – a handheld gun for on-site coating
  • Specialized HVAF S equipment:
    • SL – a dedicated gun for spraying low melting point metals
    • STi – a dedicated gun for the deposition of titanium and Ti-alloy coatings
  • Additional equipment:

Kermetico, Inc. – HVAF & HVOF Equipment and Technology Excellence Since 2006

We make different thermal spray systems for different applications.

Please check the full spectrum of our equipment here.

Our HVAF systems operate each of our guns or multiple guns at once (by request).

We supply two types of control consoles and a variety of powder feeders and gas vaporizers.

We proudly design and produce our thermal spray equipment in California, USA, and install it around the world.

You can visit our R&D center in Benicia, CA to meet our designers and see our HVAF and HVOF equipment in action.
